BMW 801 Radial Engine - Aircraft: Focke-Wulf 190

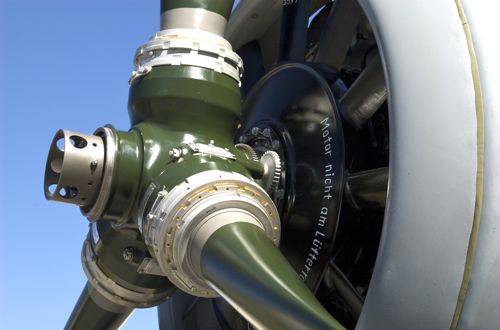

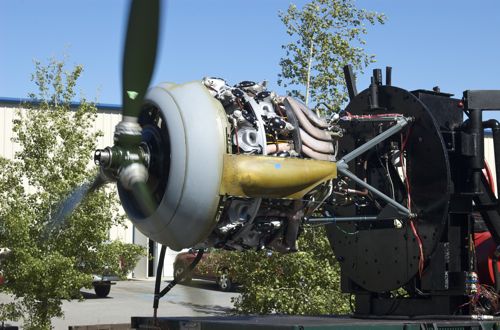

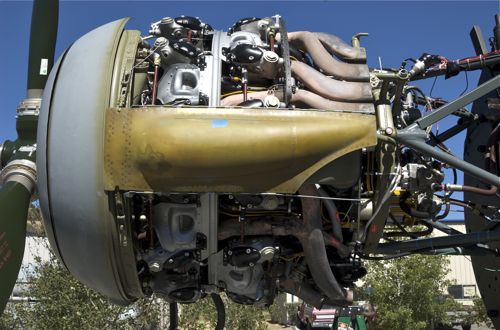

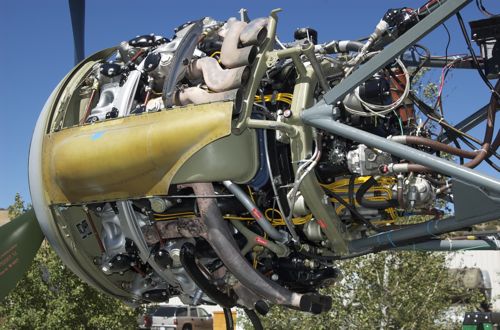

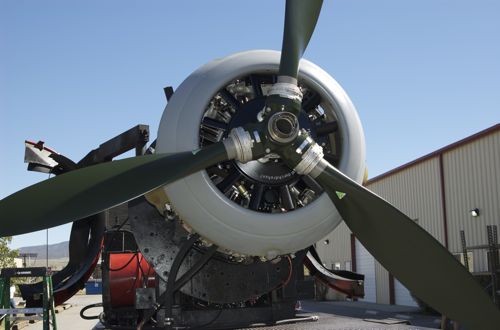

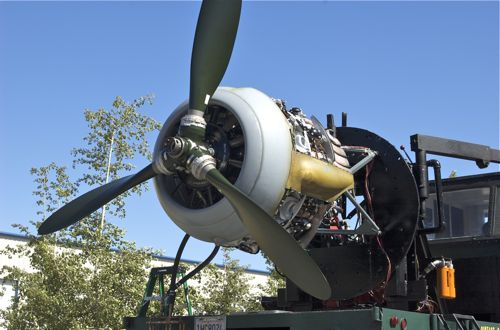

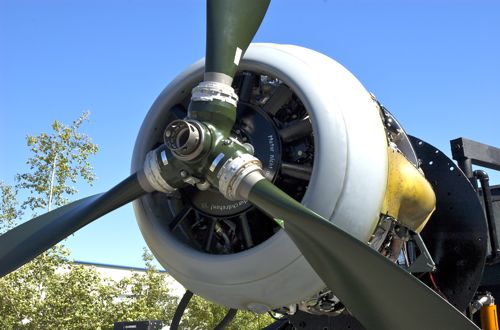

The BMW 801 was a powerful German air-cooled radial aircraft engine built by BMW and used in a number of German military aircraft of World War II. This rebuilt BMW 801 is the first to run in 60 years.

BMW 801 engine run BMW 801 engine run BMW 801 engine run BMW 801 engine run BMW 801 engine run BMW 801 engine run BMW 801 engine run BMW 801 engine run

Focke-Wulf 190 drawing

BMW 801 RADIAL ENGINE SPECIFICATIONS
General Characteristics Performance Engine Components
Type: 14-cylinder supercharged two-row air-cooled radial engine
Bore: 6.14 in
Stroke: 6.14 in
Displacement: 2,550 cu in
Length: 79 in
Diameter: 51 in
Dry weight: 2,325 lb 		Power output: 1,600 hp at 2,700 rpm at takeoff Valvetrain: One intake and one sodium-cooled exhaust valve per cylinder
Supercharger: Gear-driven single-stage two-speed
Fuel system: Fuel injection
Cooling system: Air-cooled
